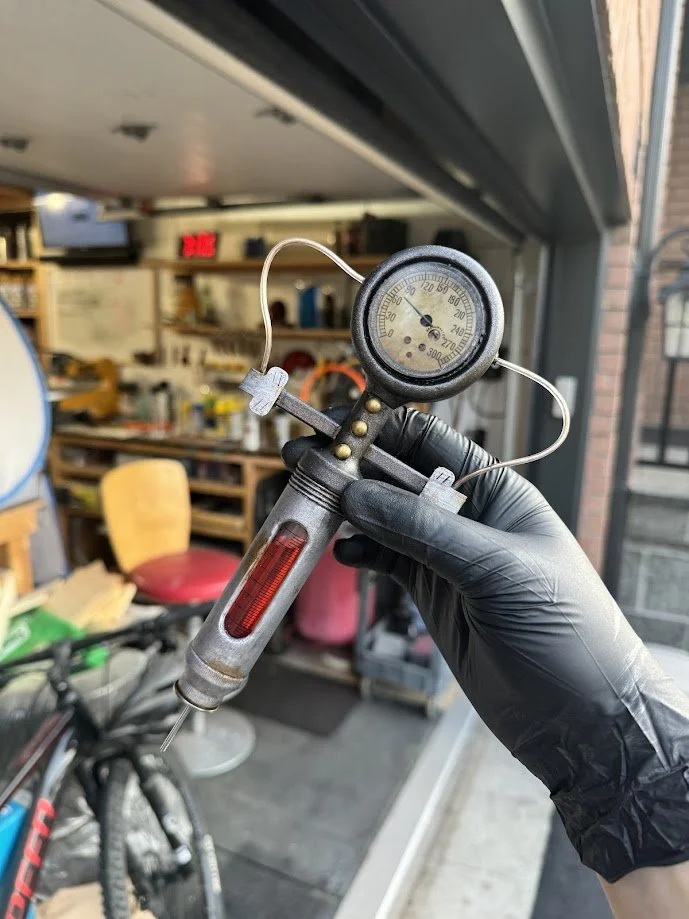

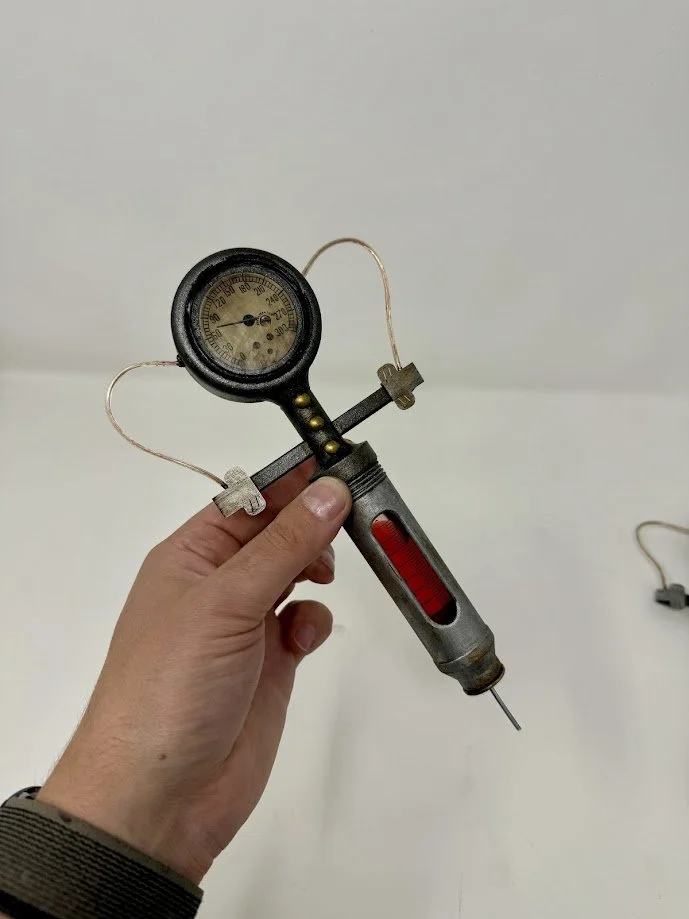

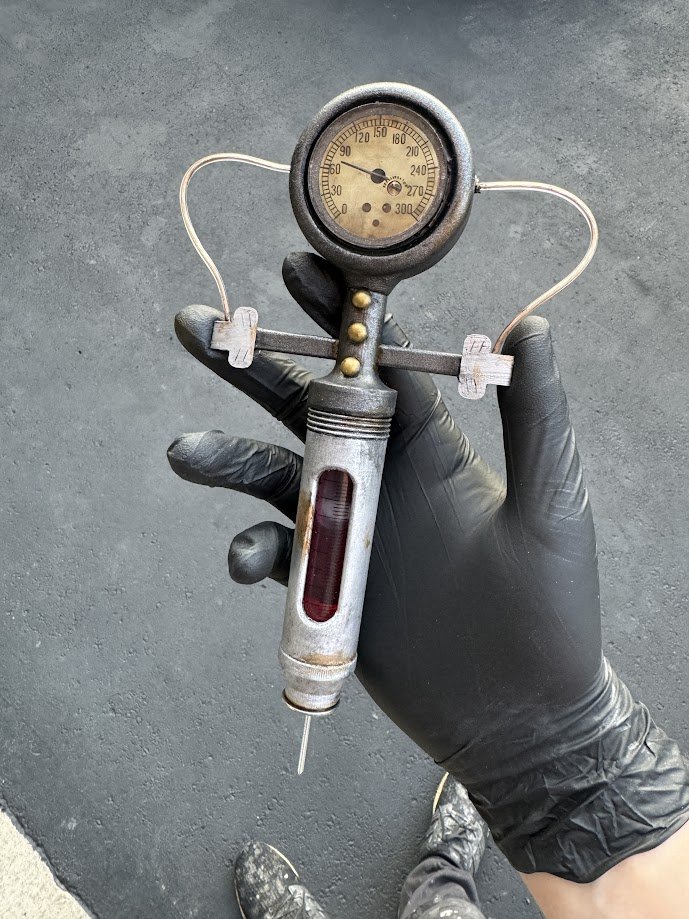

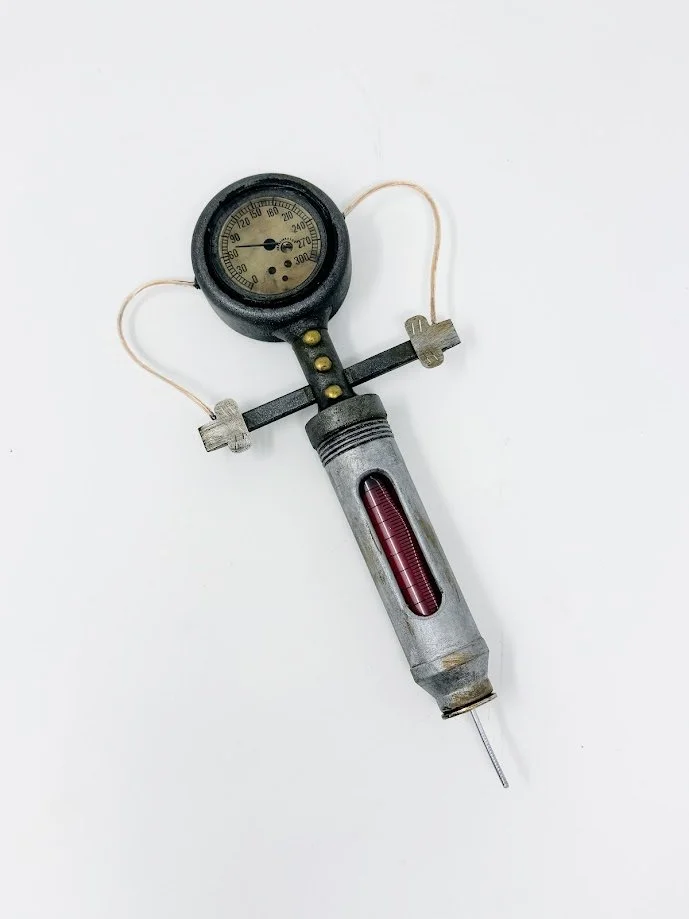

Another Fallout replica project, this time the Stimpak. I have always liked the design and wanted to build my own version with working visual elements and layered materials.

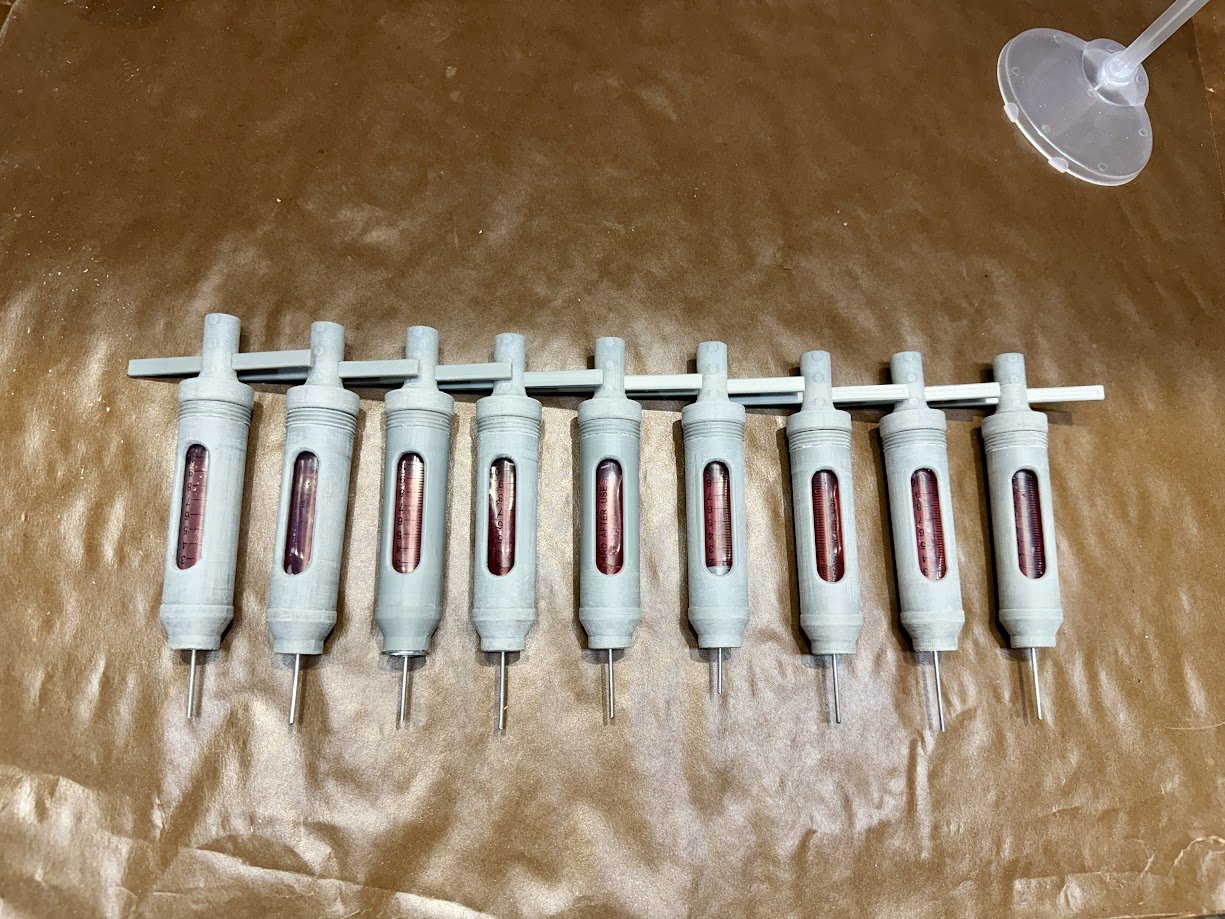

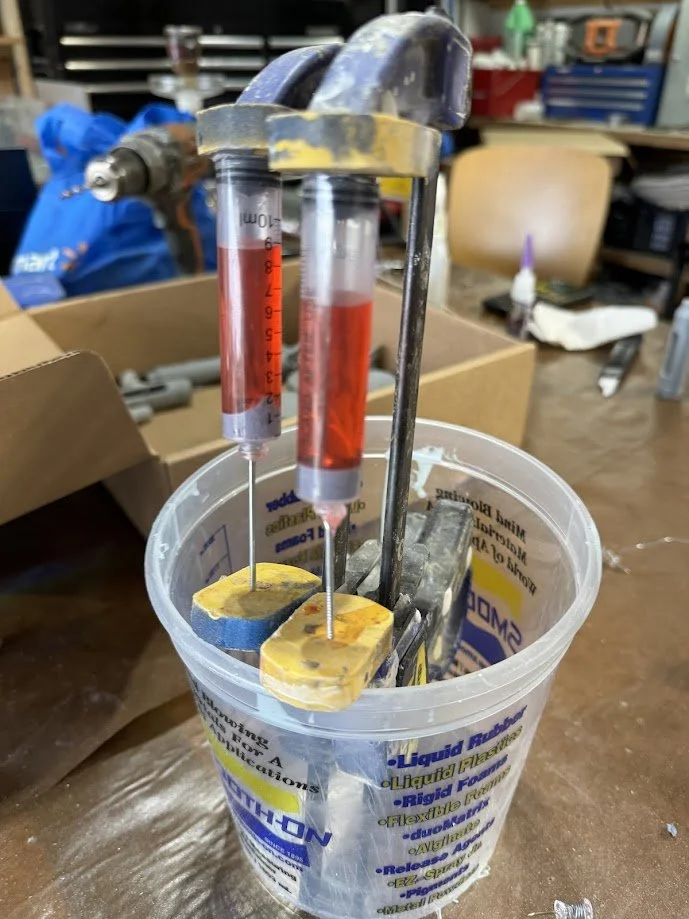

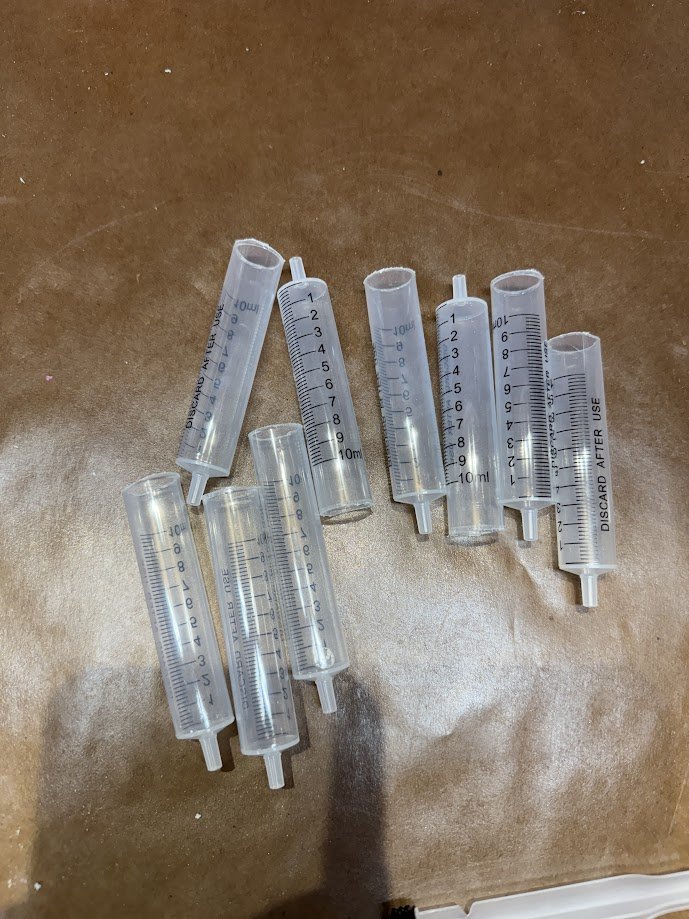

The prop was designed to be FDM printed in multiple parts with minimal supports to reduce cleanup time. One of the goals was to include red liquid inside the syringes so it could move and slosh for a more realistic effect. The gauge and exposed wiring were also key details in the build.

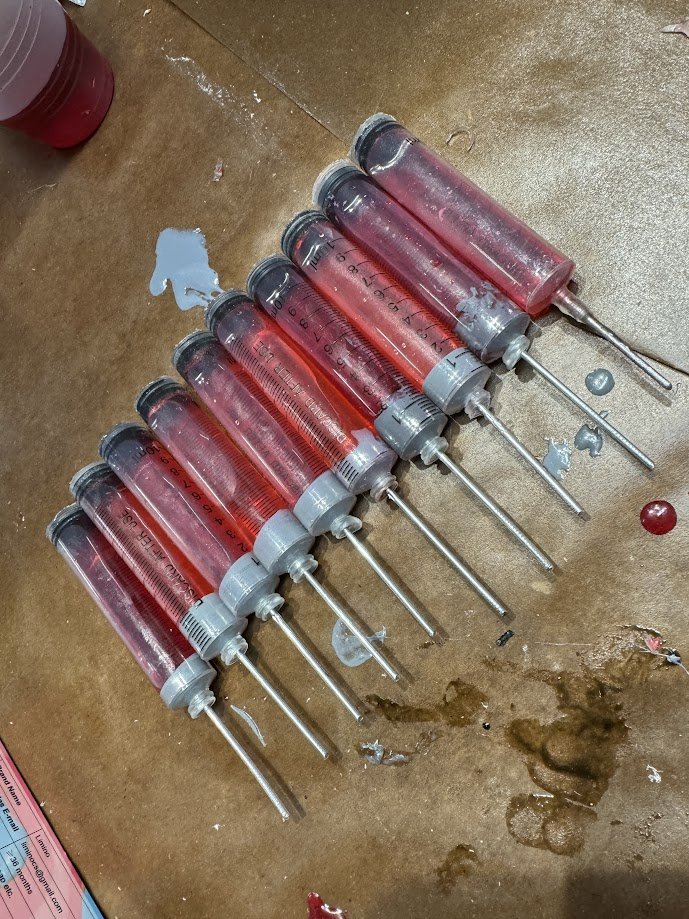

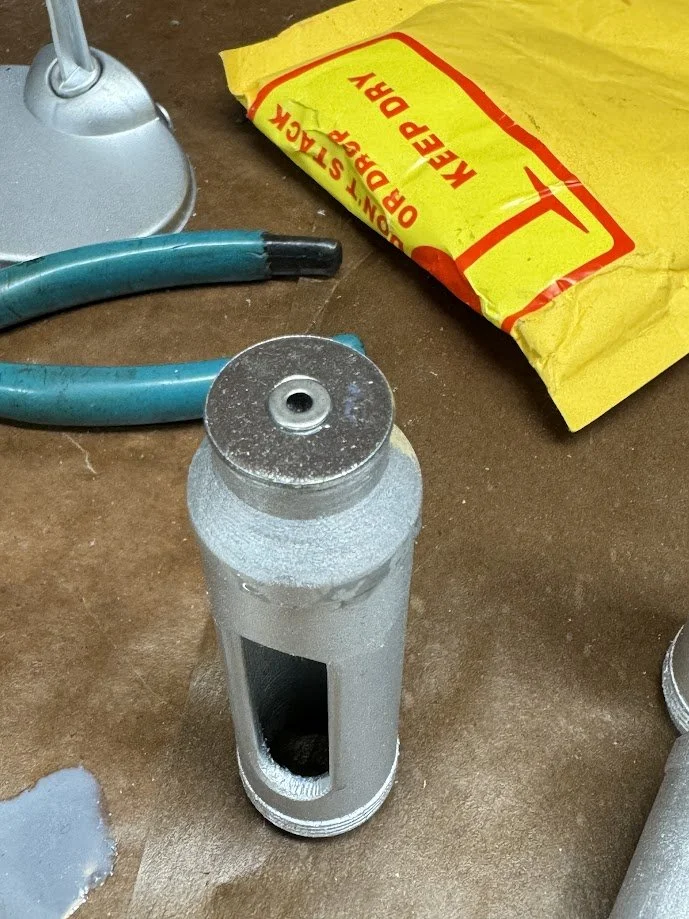

The original needle was 3D printed, but later replaced with the body of a metal rivet for better durability and appearance. Metal washers were added in several areas to build up surface detail. Resin was poured into the bottoms of each syringe to prevent leaks, and epoxy was used at the top to fully seal the assembly.

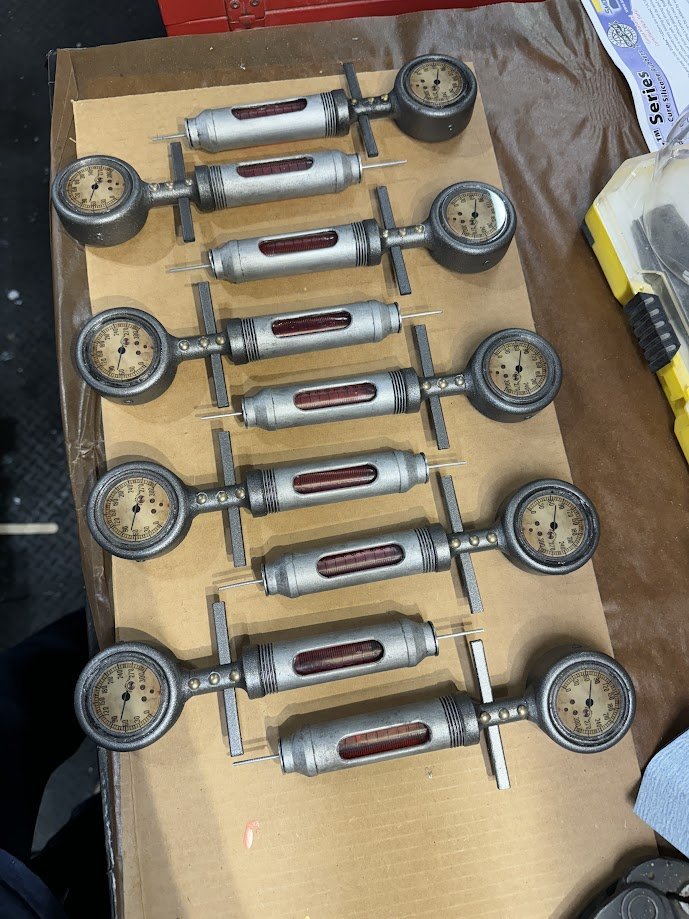

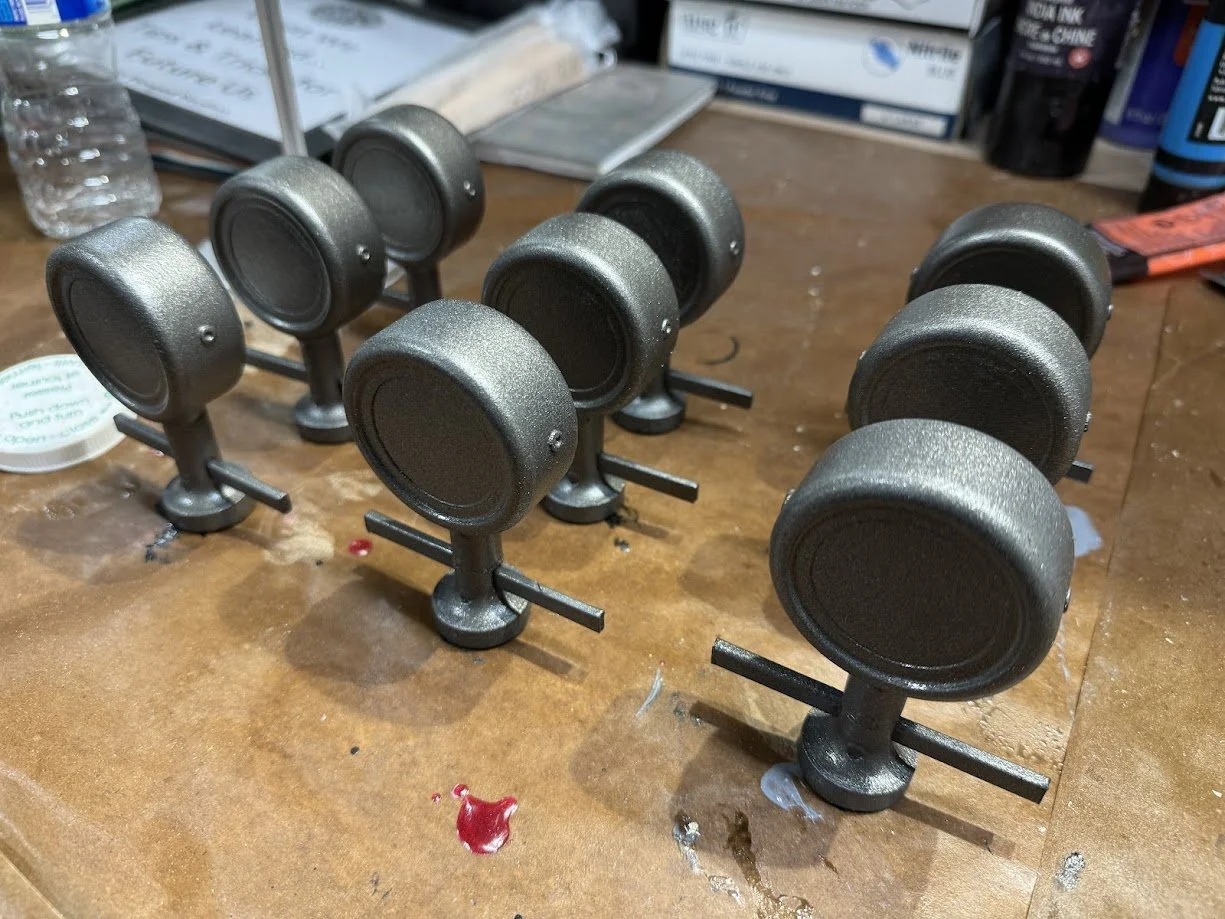

The finish used a mix of gunmetal, aluminum, and silver paints. Rust effects were added using layered inks and paints to vary the surface tones. Brass pins were heated and pressed into the front section for additional detail.

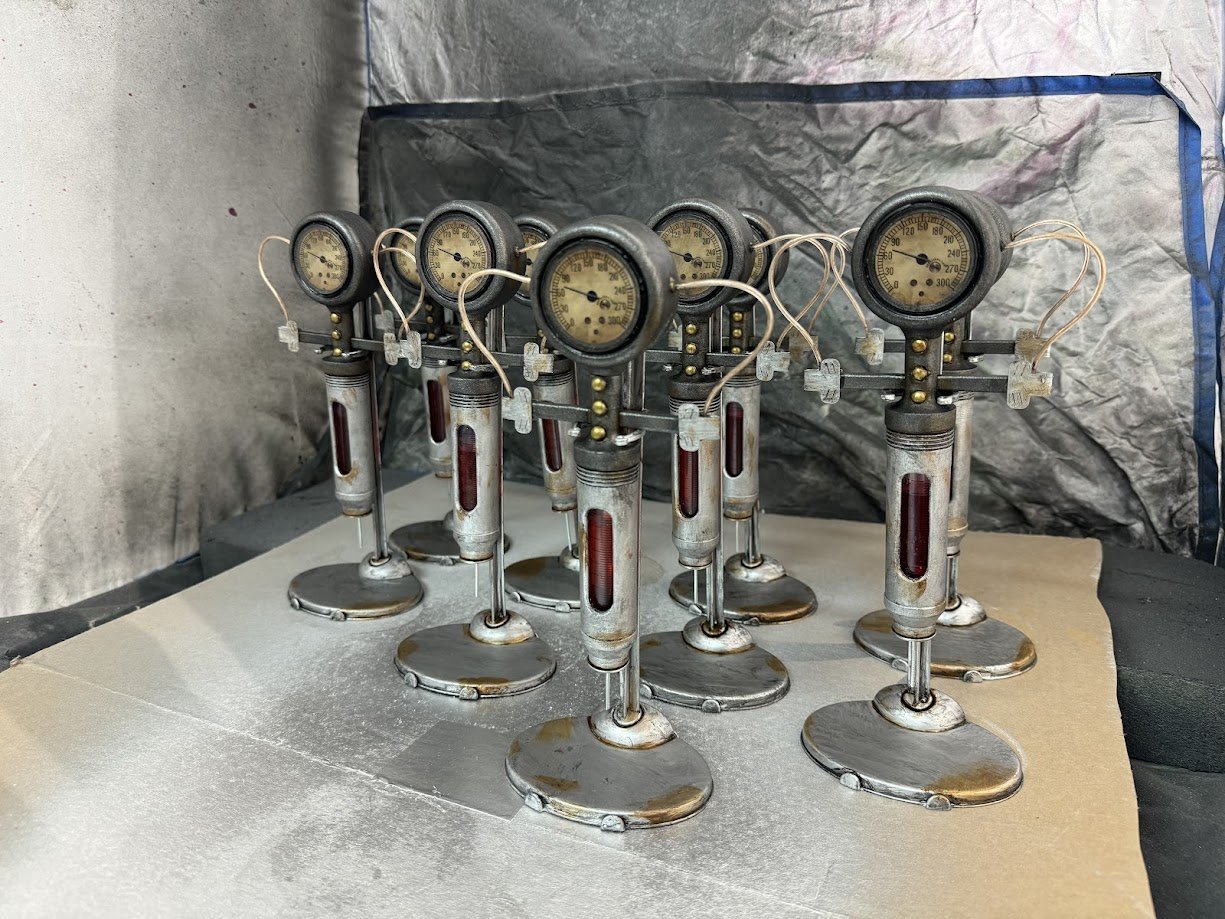

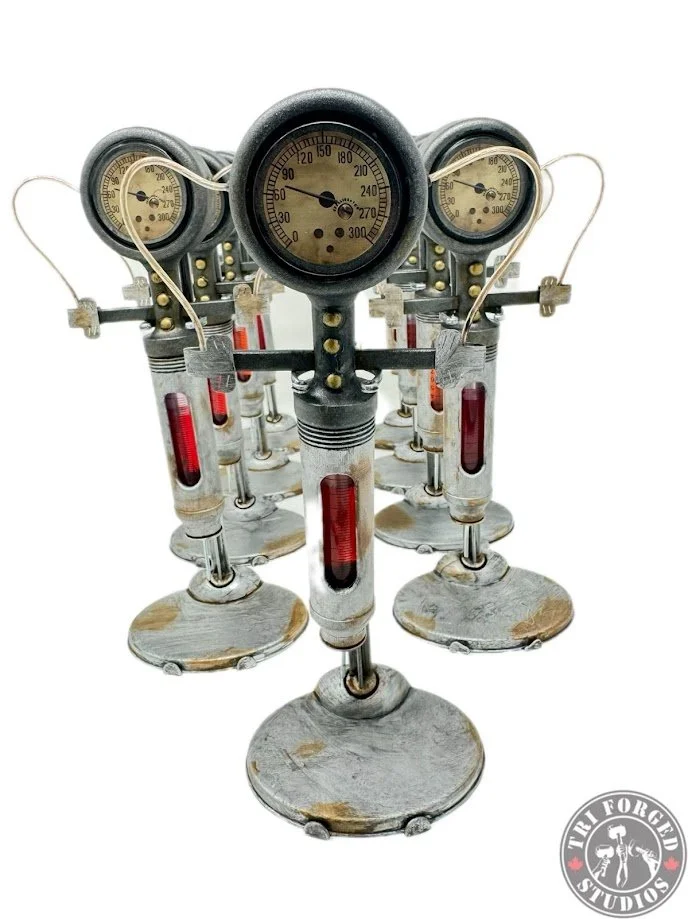

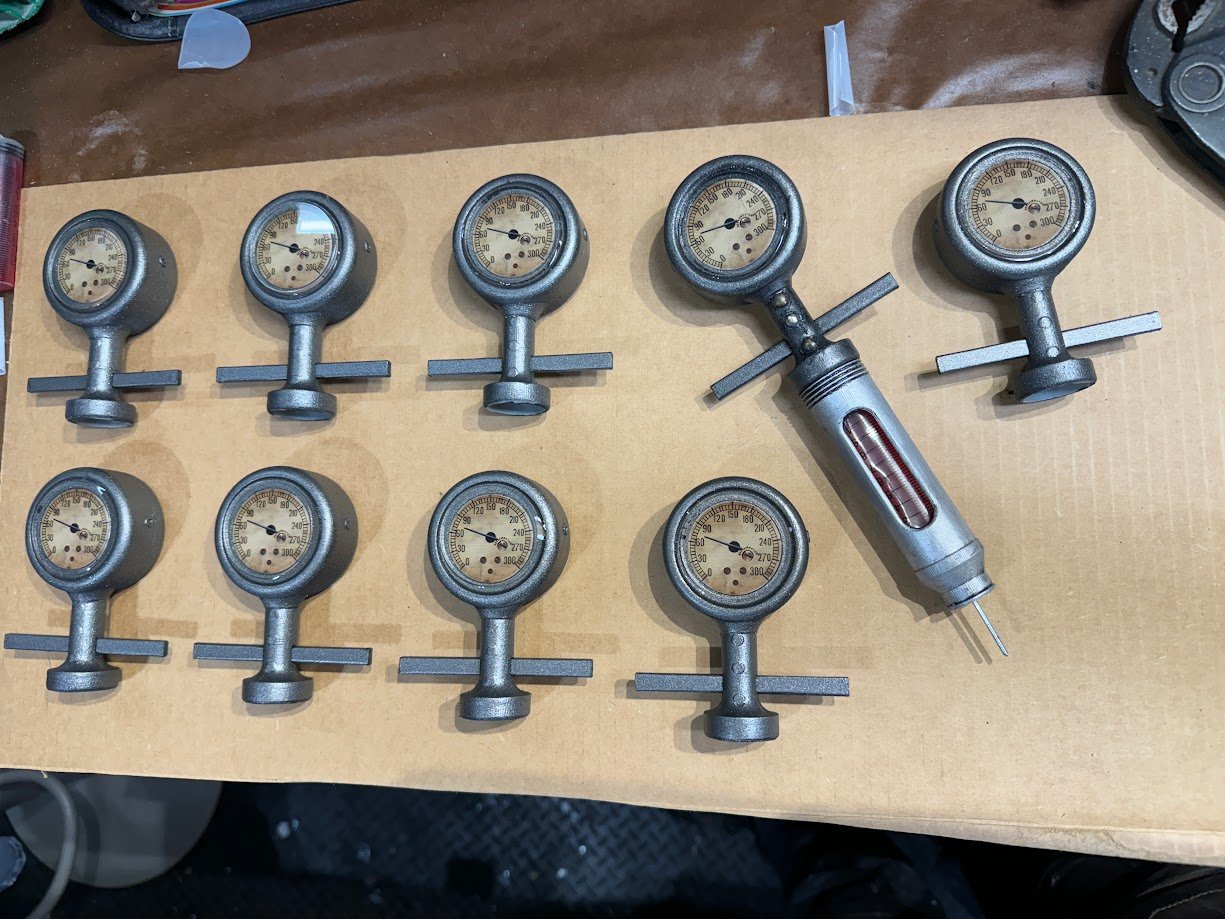

The gauge graphic was printed in vinyl and backed with a clear acrylic lens. A display stand was added near the end of the project to support the prop and improve presentation.
